FAG N321-E-XL-M1-C3
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

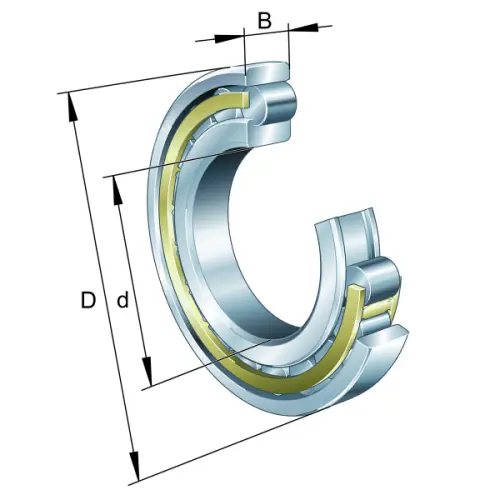

Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
225 mm
Outside diameter
B
49 mm
Width
Cr
495,000 N
Basic dynamic load rating, radial
C0r
470,000 N
Basic static load rating, radial
Cur
79,000 N
Fatigue load limit, radial
≈m
9.535 kg
Weight
Mounting dimensions
Da
211 mm
Diameter of housing shoulder
ra1 max
2.5 mm
Maximum recess radius
