FAG N322-E-XL-M1-C3
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

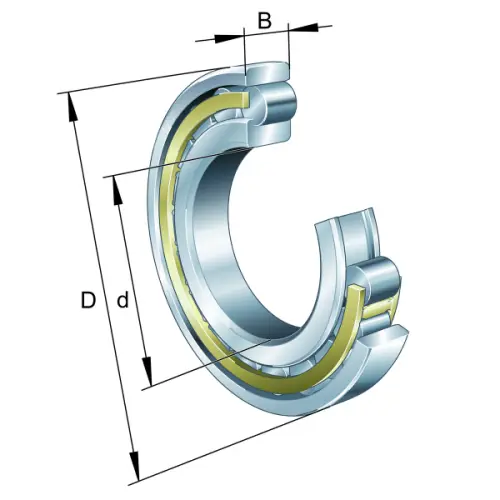

Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
240 mm
Outside diameter
B
50 mm
Width
Cr
520,000 N
Basic dynamic load rating, radial
C0r
510,000 N
Basic static load rating, radial
Cur
86,000 N
Fatigue load limit, radial
nG Grease
4,250 1/min
Limiting speed for grease lubrication
nG Oil
5,000 1/min
Limiting speed for oil lubrication
≈m
11.34 kg
Weight
Mounting dimensions
da
124 mm
Diameter shaft shoulder
Da
226 mm
Diameter of housing shoulder
ra1 max
2.5 mm
Maximum recess radius
