FAG N326-E-XL-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

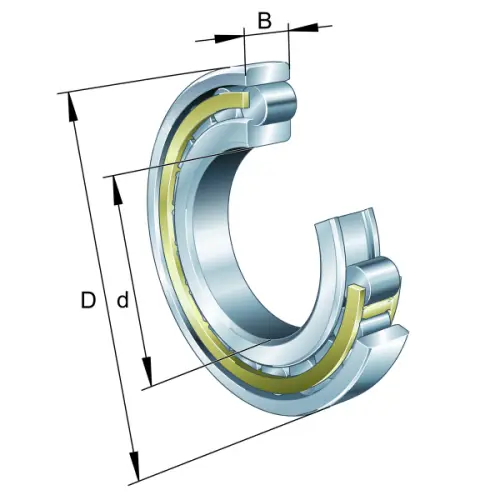

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
280 mm
Outside diameter
B
58 mm
Width
Cr
720,000 N
Basic dynamic load rating, radial
C0r
720,000 N
Basic static load rating, radial
Cur
115,000 N
Fatigue load limit, radial
nG Grease
3,600 1/min
Limiting speed for grease lubrication
nG Oil
4,250 1/min
Limiting speed for oil lubrication
≈m
17.84 kg
Weight
Mounting dimensions
da
147 mm
Diameter shaft shoulder
Da
263 mm
Diameter of housing shoulder
ra1 max
3 mm
Maximum recess radius
