FAG N332-E-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

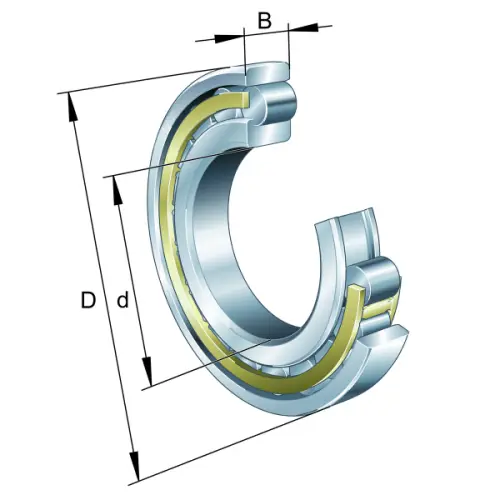

Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
340 mm
Outside diameter
B
68 mm
Width
Cr
860,000 N
Basic dynamic load rating, radial
C0r
1,060,000 N
Basic static load rating, radial
Cur
130,000 N
Fatigue load limit, radial
nG Grease
2,550 1/min
Limiting speed for grease lubrication
nG Oil
3,000 1/min
Limiting speed for oil lubrication
≈m
31.3 kg
Weight
Mounting dimensions
da
177 mm
Diameter shaft shoulder
Da
323 mm
Diameter of housing shoulder
ra1 max
3 mm
Maximum recess radius
