FAG N334-E-TB-M1
Cylindrical roller bearing N3..-E-M1, with cage, single row, non-locating bearing, 0 ribs on outer ring, 2 rib on inner ring, type N3
(BRAND)：FAG
(Availability)：In Stock

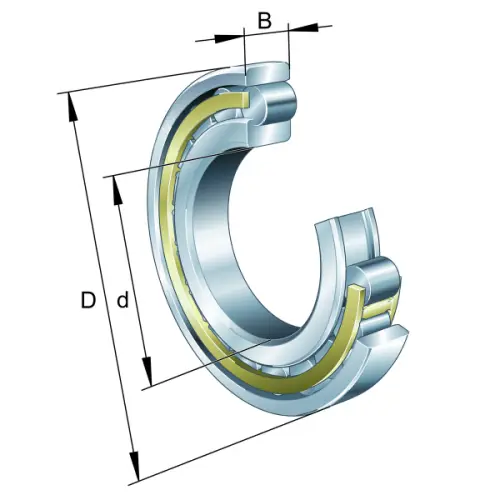

Main Dimensions & Performance Data
d
170 mm
Bore diameter
D
360 mm
Outside diameter
B
72 mm
Width
Cr
960,000 N
Basic dynamic load rating, radial
C0r
1,210,000 N
Basic static load rating, radial
Cur
138,000 N
Fatigue load limit, radial
nG Grease
2,390 1/min
Limiting speed for grease lubrication
nG Oil
2,800 1/min
Limiting speed for oil lubrication
≈m
37.8 kg
Weight
Mounting dimensions
da
187 mm
Diameter shaft shoulder
Da
343 mm
Diameter of housing shoulder
ra1 max
3 mm
Maximum recess radius
