FAG NJ18/600-MPAX-J30PC
Cylindrical roller bearing NJ..-MPAX, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock

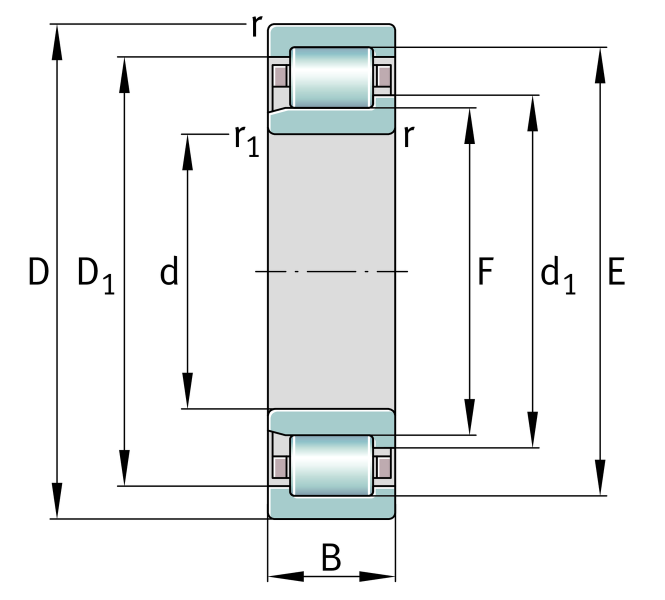

Main Dimensions & Performance Data
d
600 mm
Bore diameter
D
730 mm
Outside diameter
B
60 mm
Width
Cr
840,000 N
Basic dynamic load rating, radial
C0r
1,990,000 N
Basic static load rating, radial
Cur
175,000 N
Fatigue load limit, radial
CG
1,610 1/min
Limiting speed
≈m
53.5 kg
Weight
Mounting dimensions
da min
612 mm
Minimum diameter shaft shoulder
da max
632 mm
Maximum diameter of shaft shoulder
Da max
718 mm
Maximum diameter of housing shoulder
