FAG NJ210-E-XL-M1
Cylindrical roller bearing NJ..-E-XL-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
20 mm
Width
Cr
75,000 N
Basic dynamic load rating, radial
C0r
69,000 N
Basic static load rating, radial
Cur
11,300 N
Fatigue load limit, radial
CG
14,500 1/min
Limiting speed
nϑr
6,600 1/min
Reference speed
≈m
0.553 kg
Weight

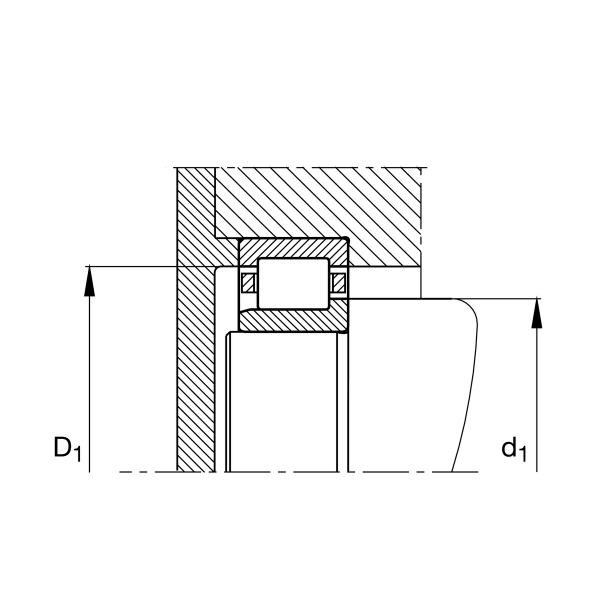

Mounting dimensions
da min
57 mm
Minimum diameter shaft shoulder
da max
58 mm
Maximum diameter of shaft shoulder
Da max
83 mm
Maximum diameter of housing shoulder
d min
67 mm
Minimum shaft shoulder
ra max
1 mm
Maximum recess radius
