FAG NJ214-E-XL-MPAX-C4H/NA
Cylindrical Roller Bearings

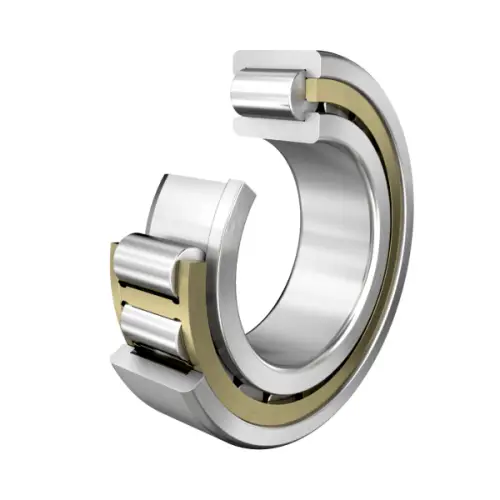

Cylindrical roller bearing NJ..-E-XL-MPAX, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
24 mm
Width
Cr
141,000 N
Basic dynamic load rating, radial
C0r
138,000 N
Basic static load rating, radial
Cur
24,500 N
Fatigue load limit, radial
CG
10,100 1/min
Limiting speed
nϑr
4,650 1/min
Reference speed
≈m
1.29 kg
Weight
Mounting dimensions
da min
79 mm
Minimum diameter shaft shoulder
da max
82 mm
Maximum diameter of shaft shoulder
Da max
116 mm
Maximum diameter of housing shoulder
d min
92 mm
Minimum shaft shoulder
ra max
1.5 mm
Maximum recess radius
