FAG NJ219-E-XL-M1-F1-J20AA-C4-M32AX
Cylindrical Roller Bearings

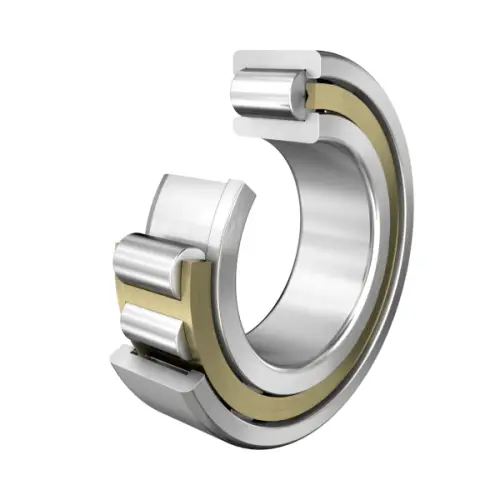

Cylindrical roller bearing NJ..-E-XL-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

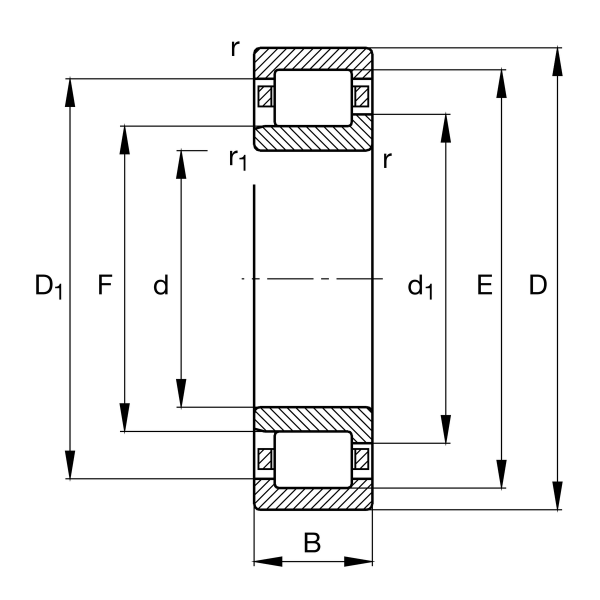

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
170 mm
Outside diameter
B
43 mm
Width
Cr
340,000 N
Basic dynamic load rating, radial
C0r
370,000 N
Basic static load rating, radial
Cur
65,000 N
Fatigue load limit, radial
CG
7,200 1/min
Limiting speed
nϑr
3,050 1/min
Reference speed
≈m
3.126 kg
Weight
Mounting dimensions
da min
107 mm
Minimum diameter shaft shoulder
da max
111 mm
Maximum diameter of shaft shoulder
Da max
158 mm
Maximum diameter of housing shoulder
d min
123 mm
Minimum shaft shoulder
ra max
2 mm
Maximum recess radius
