FAG NJ220-E-XL-MPAX-N12B-C3
Cylindrical roller bearing NJ..-E-XL-MPAX, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock

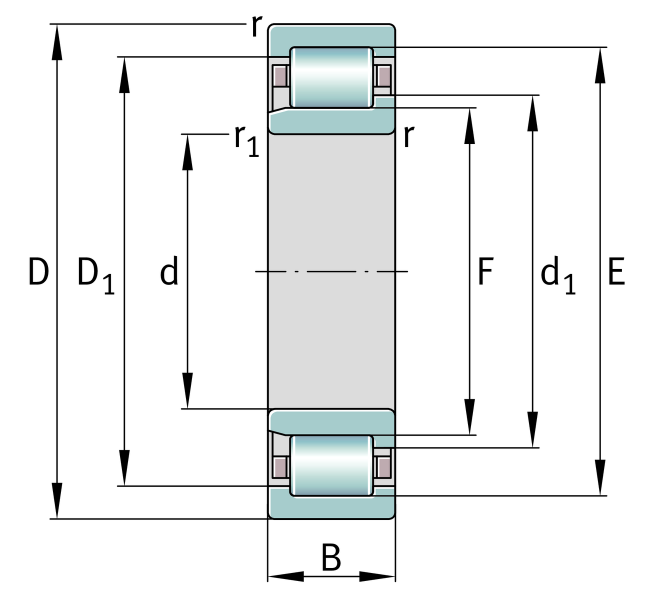

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
180 mm
Outside diameter
B
34 mm
Width
Cr
295,000 N
Basic dynamic load rating, radial
C0r
305,000 N
Basic static load rating, radial
Cur
52,000 N
Fatigue load limit, radial
CG
6,800 1/min
Limiting speed
nϑr
3,450 1/min
Reference speed
≈m
3.845 kg
Weight
Mounting dimensions
da min
112 mm
Minimum diameter shaft shoulder
da max
117 mm
Maximum diameter of shaft shoulder
Da max
168 mm
Maximum diameter of housing shoulder
d min
130 mm
Minimum shaft shoulder
ra max
2 mm
Maximum recess radius
