FAG NJ2218-E-XL-M1-F1-H67C-J20AA-C4
Cylindrical roller bearing NJ..-E-XL-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

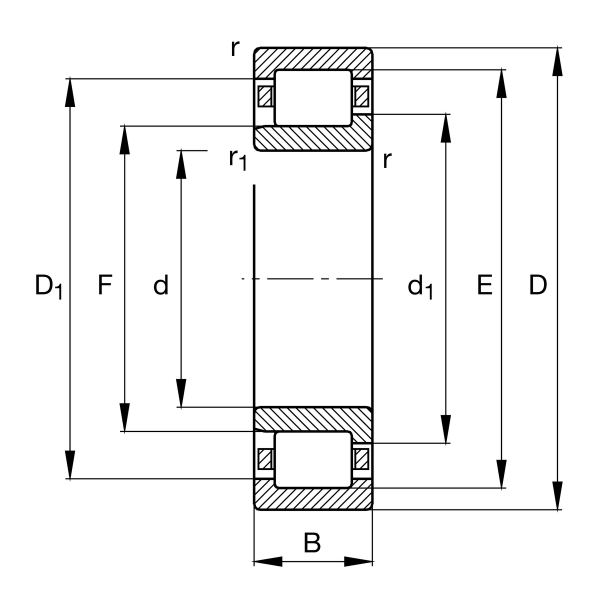

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
40 mm
Width
Cr
285,000 N
Basic dynamic load rating, radial
C0r
315,000 N
Basic static load rating, radial
Cur
56,000 N
Fatigue load limit, radial
CG
7,800 1/min
Limiting speed
nϑr
3,250 1/min
Reference speed
≈m
3.553 kg
Weight
Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
da max
105 mm
Maximum diameter of shaft shoulder
Da max
149 mm
Maximum diameter of housing shoulder
d min
116 mm
Minimum shaft shoulder
ra max
2 mm
Maximum recess radius
