FAG NJ2226-E-XL-TVP2-C3
Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
230 mm
Outside diameter
B
64 mm
Width
Cr
620,000 N
Basic dynamic load rating, radial
C0r
730,000 N
Basic static load rating, radial
Cur
120,000 N
Fatigue load limit, radial
CG
4,000 1/min
Limiting speed
nϑr
2,280 1/min
Reference speed
≈m
10.5 kg
Weight

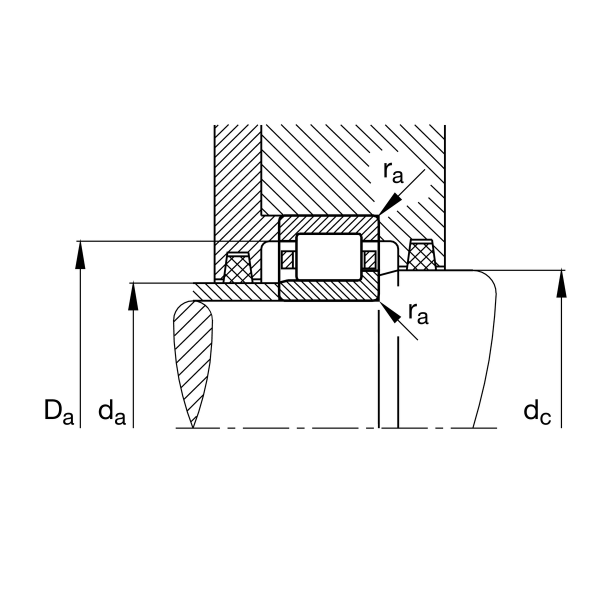

Mounting dimensions
da min
144 mm
Minimum diameter shaft shoulder
da max
151 mm
Maximum diameter of shaft shoulder
Da max
216 mm
Maximum diameter of housing shoulder
d min
168 mm
Minimum shaft shoulder
ra max
2.5 mm
Maximum recess radius
