FAG NJ224-E-XL-TVP2
Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
215 mm
Outside diameter
B
40 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
415,000 N
Basic static load rating, radial
Cur
70,000 N
Fatigue load limit, radial
CG
4,350 1/min
Limiting speed
nϑr
3,050 1/min
Reference speed
≈m
5.745 kg
Weight

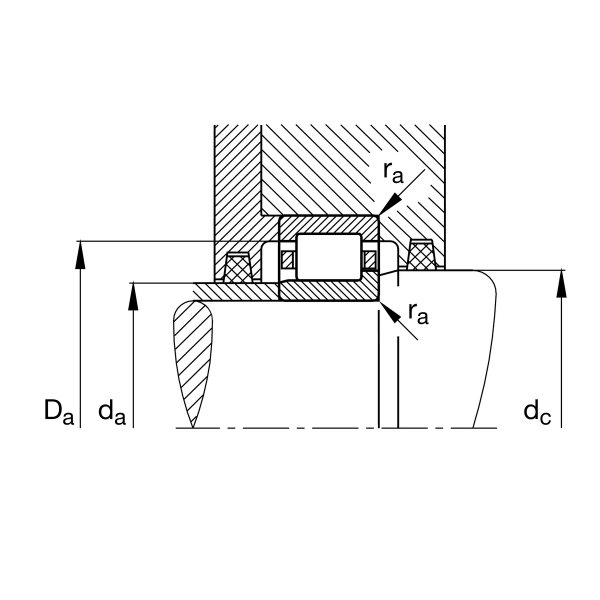

Mounting dimensions
da min
132 mm
Minimum diameter shaft shoulder
da max
141 mm
Maximum diameter of shaft shoulder
Da max
203 mm
Maximum diameter of housing shoulder
d min
156 mm
Minimum shaft shoulder
ra max
2.1 mm
Maximum recess radius
