FAG NJ2309-E-XL-TVP2-QP51-C4
Cylindrical Roller Bearings

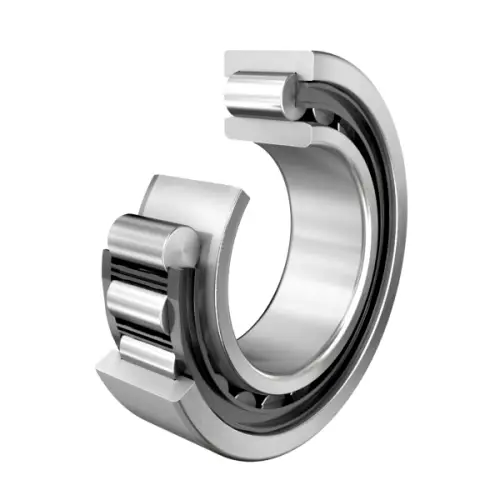

Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
100 mm
Outside diameter
B
36 mm
Width
Cr
163,000 N
Basic dynamic load rating, radial
C0r
154,000 N
Basic static load rating, radial
Cur
28,500 N
Fatigue load limit, radial
CG
9,800 1/min
Limiting speed
nϑr
5,200 1/min
Reference speed
≈m
1.31 kg
Weight

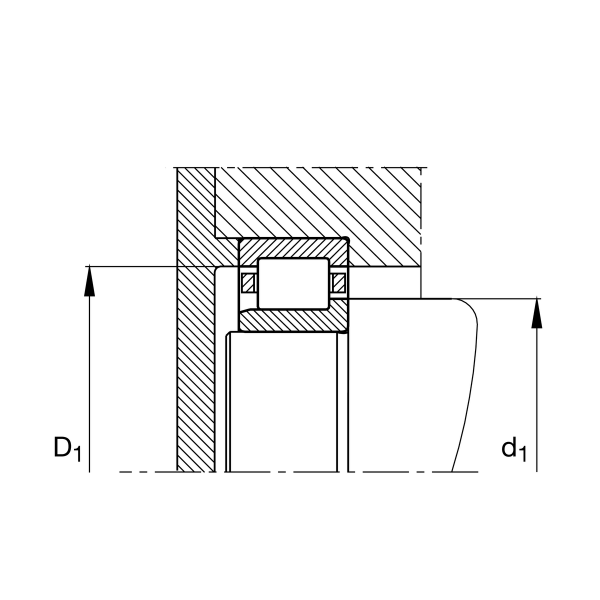

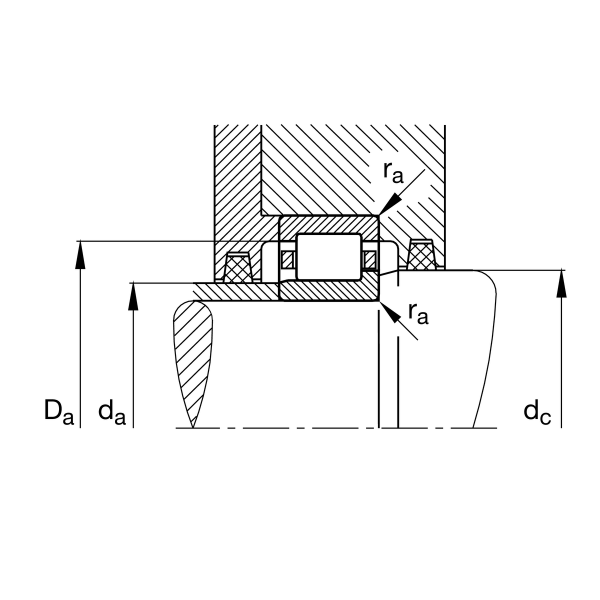

Mounting dimensions
da min
54 mm
Minimum diameter shaft shoulder
da max
57 mm
Maximum diameter of shaft shoulder
Da max
91 mm
Maximum diameter of housing shoulder
d min
66 mm
Minimum shaft shoulder
ra max
1.5 mm
Maximum recess radius
