FAG NJ2315-E-XL-TVP2-J30PC

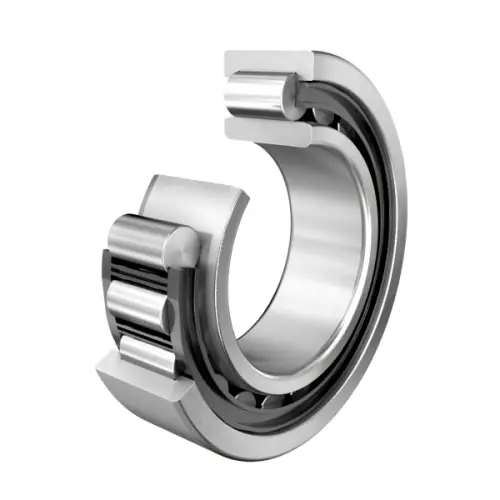

Cylindrical roller bearing NJ..-E-XL-TVP2, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
75 mm
Bore diameter
D
160 mm
Outside diameter
B
55 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
395,000 N
Basic static load rating, radial
Cur
73,000 N
Fatigue load limit, radial
CG
5,900 1/min
Limiting speed
nϑr
3,550 1/min
Reference speed
≈m
4.97 kg
Weight
Mounting dimensions
da min
87 mm
Minimum diameter shaft shoulder
da max
93 mm
Maximum diameter of shaft shoulder
Da max
148 mm
Maximum diameter of housing shoulder
d min
106 mm
Minimum shaft shoulder
ra max
2.1 mm
Maximum recess radius
