FAG NJ2318-E-XL-MPAX-ILR

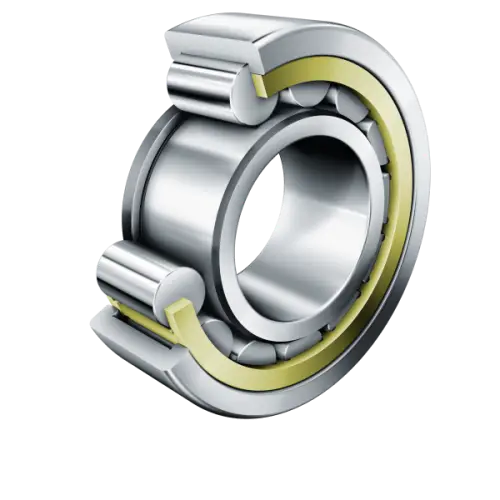

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
190 mm
Outside diameter
B
64 mm
Width
Cr
640,000 N
Basic dynamic load rating, radial
C0r
530,000 N
Basic static load rating, radial
Cur
94,000 N
Fatigue load limit, radial
CG
6,300 1/min
Limiting speed
nϑr
3,000 1/min
Reference speed
≈m
9 kg
Weight
Mounting dimensions
da min
104 mm
Minimum diameter shaft shoulder
da max
113 mm
Maximum diameter of shaft shoulder
Da max
176 mm
Maximum diameter of housing shoulder
