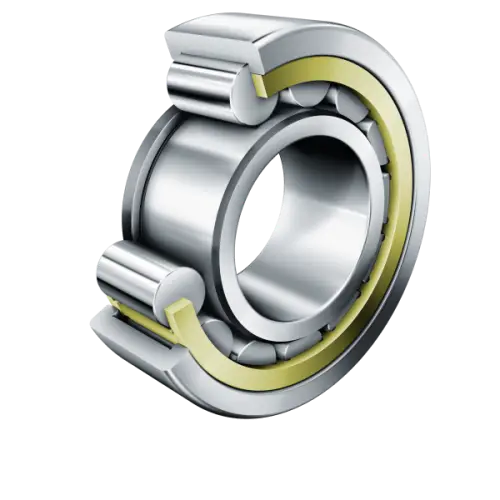

FAG NJ2319-E-XL-MPAX-ILR-C3
Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

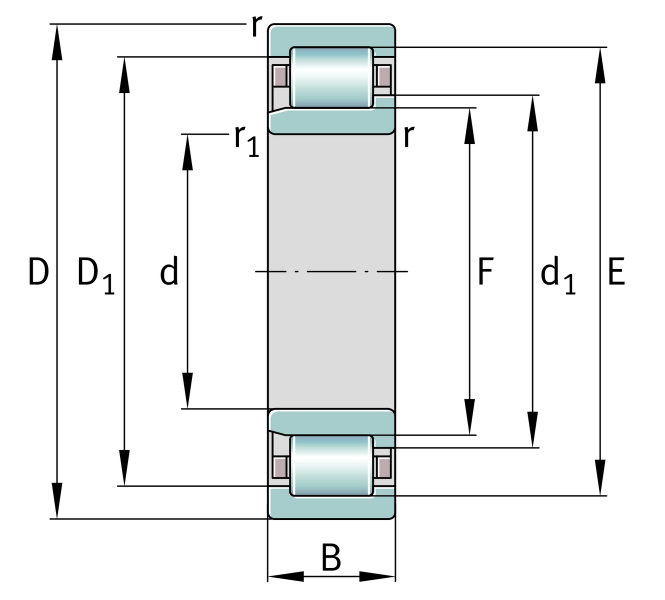

Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
67 mm
Width
Cr
670,000 N
Basic dynamic load rating, radial
C0r
580,000 N
Basic static load rating, radial
Cur
101,000 N
Fatigue load limit, radial
CG
6,100 1/min
Limiting speed
nϑr
2,800 1/min
Reference speed
≈m
10.3 kg
Weight
Mounting dimensions
da max
121 mm
Maximum diameter of shaft shoulder
Da max
186 mm
Maximum diameter of housing shoulder
