FAG NJ2326-E-XL-MPAX-ILR

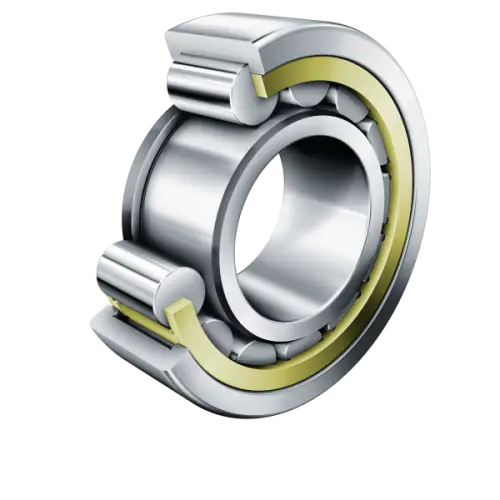

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock

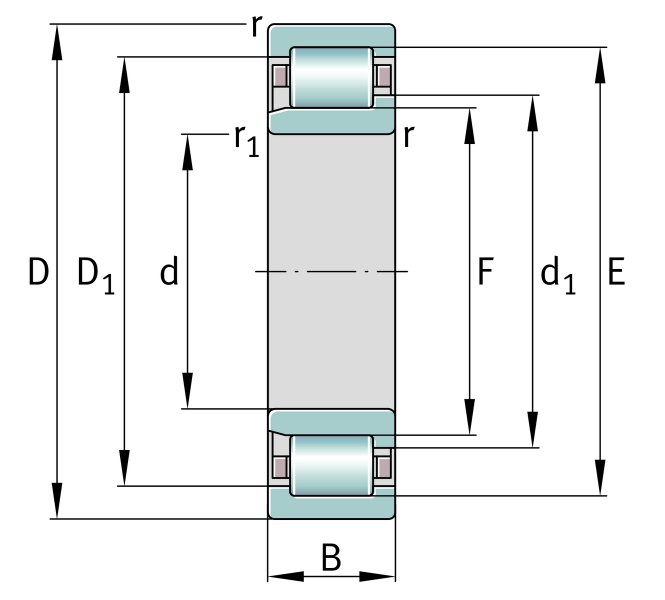

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
280 mm
Outside diameter
B
93 mm
Width
Cr
1,340,000 N
Basic dynamic load rating, radial
C0r
1,220,000 N
Basic static load rating, radial
Cur
198,000 N
Fatigue load limit, radial
CG
4,250 1/min
Limiting speed
nϑr
1,750 1/min
Reference speed
≈m
29.2 kg
Weight
Mounting dimensions
Da max
266 mm
Maximum diameter of housing shoulder
