FAG NJ2330-E-XL-MPAX-ILR-C3

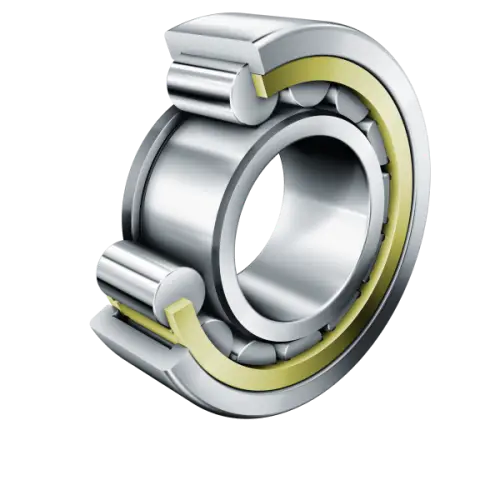

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock

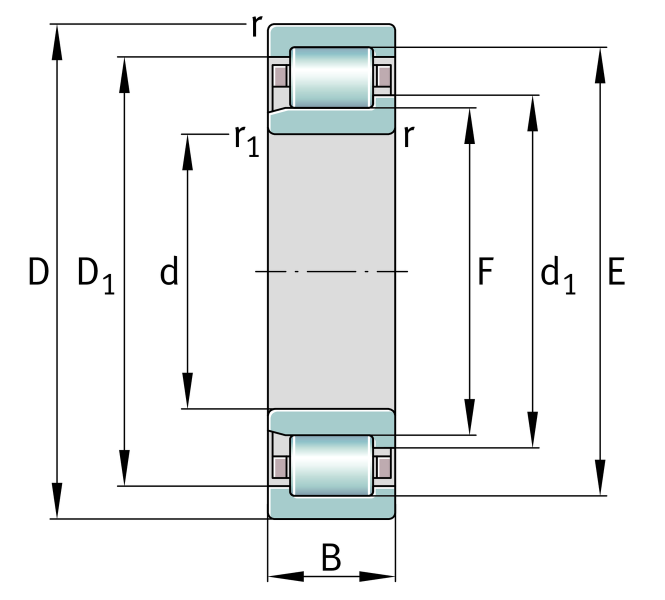

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
320 mm
Outside diameter
B
108 mm
Width
Cr
1,700,000 N
Basic dynamic load rating, radial
C0r
1,600,000 N
Basic static load rating, radial
Cur
250,000 N
Fatigue load limit, radial
CG
3,650 1/min
Limiting speed
nϑr
1,460 1/min
Reference speed
≈m
43.9 kg
Weight
Mounting dimensions
Da max
303 mm
Maximum diameter of housing shoulder
