FAG NJ2334-EX-TB-XL-MPAX-ILR-C3

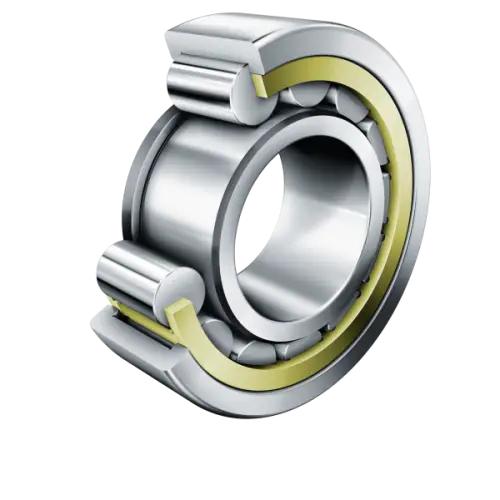

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
170 mm
Bore diameter
D
360 mm
Outside diameter
B
120 mm
Width
Cr
2,190,000 N
Basic dynamic load rating, radial
C0r
2,070,000 N
Basic static load rating, radial
Cur
285,000 N
Fatigue load limit, radial
CG
3,200 1/min
Limiting speed
nϑr
1,210 1/min
Reference speed
≈m
61.6 kg
Weight
Mounting dimensions
Da max
343 mm
Maximum diameter of housing shoulder
