FAG NJ2356-EX-TB-MPAX-ILR-C3

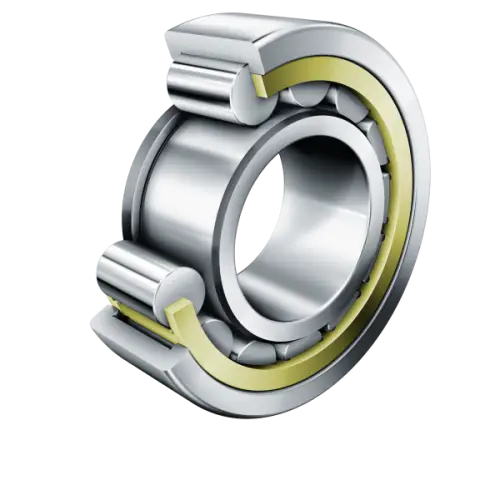

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
280 mm
Bore diameter
D
580 mm
Outside diameter
B
175 mm
Width
Cr
4,350,000 N
Basic dynamic load rating, radial
C0r
5,200,000 N
Basic static load rating, radial
Cur
510,000 N
Fatigue load limit, radial
CG
1,640 1/min
Limiting speed
nϑr
590 1/min
Reference speed
≈m
231.1 kg
Weight
Mounting dimensions
da max
349 mm
Maximum diameter of shaft shoulder
Da max
554 mm
Maximum diameter of housing shoulder
