FAG NJ2360-E-TB-MPAX-ILR-C3

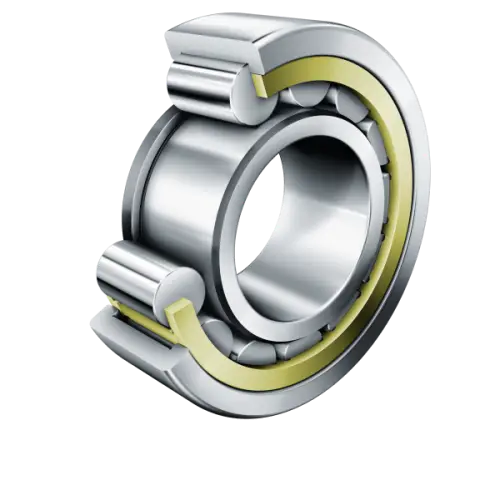

Cylindrical roller bearing NJ..-E..-MPAX-ILR, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock

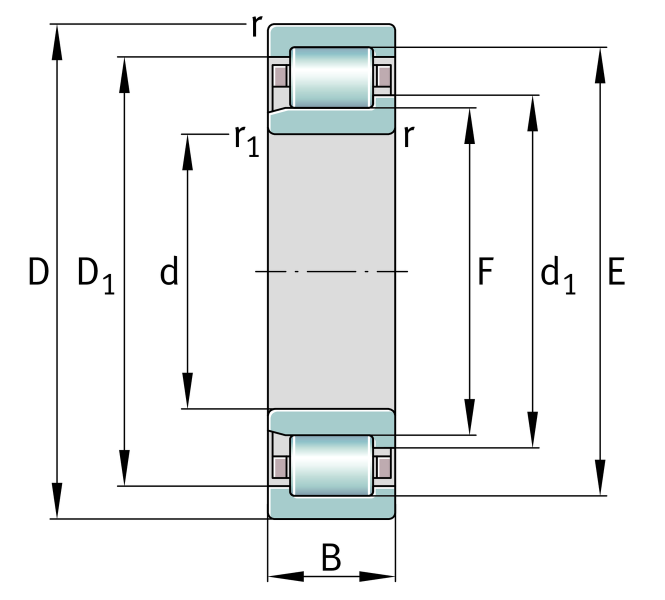

Main Dimensions & Performance Data
d
300 mm
Bore diameter
D
620 mm
Outside diameter
B
185 mm
Width
Cr
4,850,000 N
Basic dynamic load rating, radial
C0r
6,100,000 N
Basic static load rating, radial
Cur
590,000 N
Fatigue load limit, radial
CG
1,570 1/min
Limiting speed
nϑr
520 1/min
Reference speed
≈m
283.9 kg
Weight
Mounting dimensions
da max
375 mm
Maximum diameter of shaft shoulder
Da max
588 mm
Maximum diameter of housing shoulder
