FAG NJ305-E-XL-M1

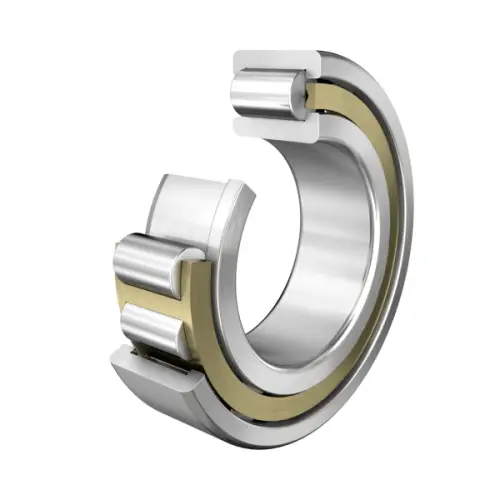

Cylindrical roller bearing NJ..-E-XL-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

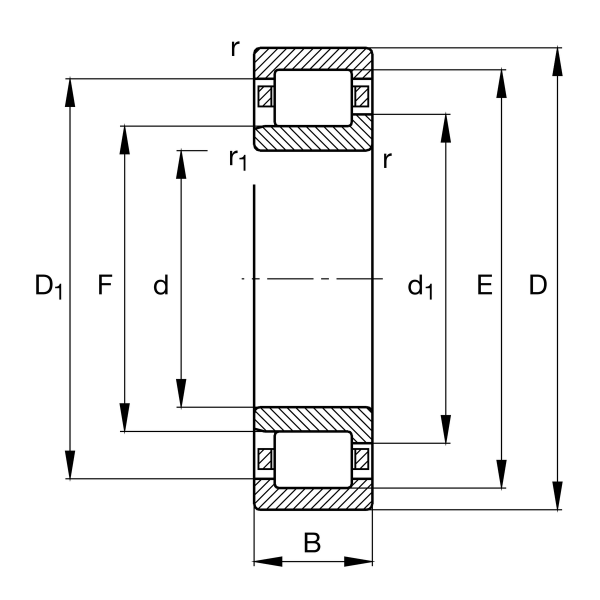

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
B
17 mm
Width
Cr
49,000 N
Basic dynamic load rating, radial
C0r
37,500 N
Basic static load rating, radial
Cur
5,700 N
Fatigue load limit, radial
CG
21,500 1/min
Limiting speed
nϑr
10,100 1/min
Reference speed
≈m
0.274 kg
Weight
Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da max
33 mm
Maximum diameter of shaft shoulder
Da max
55 mm
Maximum diameter of housing shoulder
d min
40 mm
Minimum shaft shoulder
ra max
1 mm
Maximum recess radius
