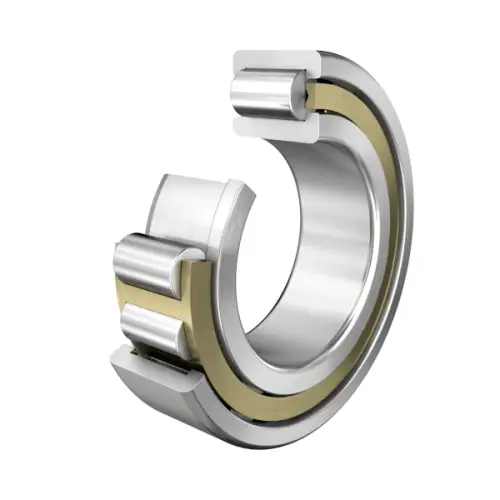

FAG NJ413-XL-M1
Cylindrical roller bearing NJ..-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
160 mm
Outside diameter
B
37 mm
Width
Cr
230,000 N
Basic dynamic load rating, radial
C0r
203,000 N
Basic static load rating, radial
Cur
36,500 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
nϑr
4,600 1/min
Reference speed
≈m
4.13 kg
Weight
Mounting dimensions
da min
79 mm
Minimum diameter shaft shoulder
da max
88 mm
Maximum diameter of shaft shoulder
Da max
146 mm
Maximum diameter of housing shoulder
d min
100 mm
Minimum shaft shoulder
ra max
2.1 mm
Maximum recess radius
