FAG NJ424-XL-M1
Cylindrical roller bearing NJ..-M1, with cage, single row, semi-locating bearing, 2 ribs on outer ring, 1 rib on inner ring, type NJ
(BRAND)：FAG
(Availability)：In Stock

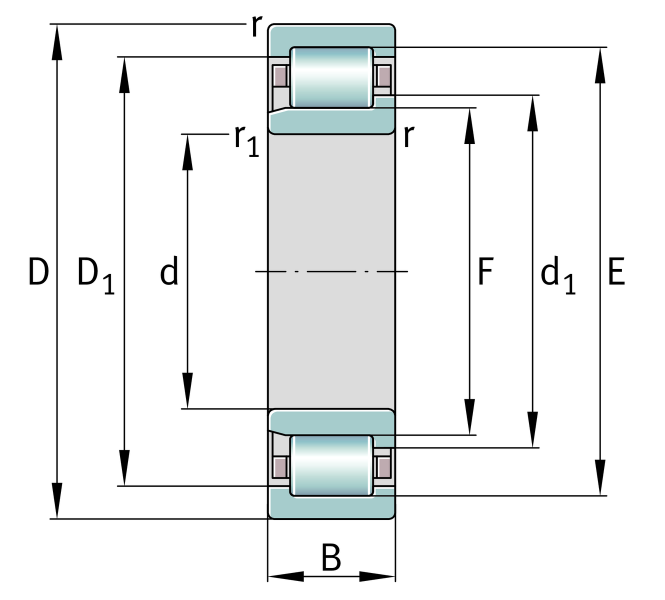

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
310 mm
Outside diameter
B
72 mm
Width
Cr
850,000 N
Basic dynamic load rating, radial
C0r
840,000 N
Basic static load rating, radial
Cur
131,000 N
Fatigue load limit, radial
CG
3,950 1/min
Limiting speed
nϑr
2,200 1/min
Reference speed
≈m
32.1 kg
Weight
Mounting dimensions
da min
144 mm
Minimum diameter shaft shoulder
da max
168 mm
Maximum diameter of shaft shoulder
Da max
286 mm
Maximum diameter of housing shoulder
d min
190 mm
Minimum shaft shoulder
ra max
4 mm
Maximum recess radius
