FAG NU1020-XL-M1-F1-J20AA-C4
Cylindrical Roller Bearings

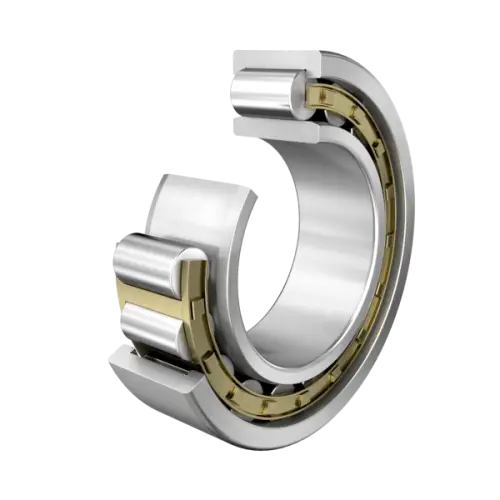

Cylindrical roller bearing NU..-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

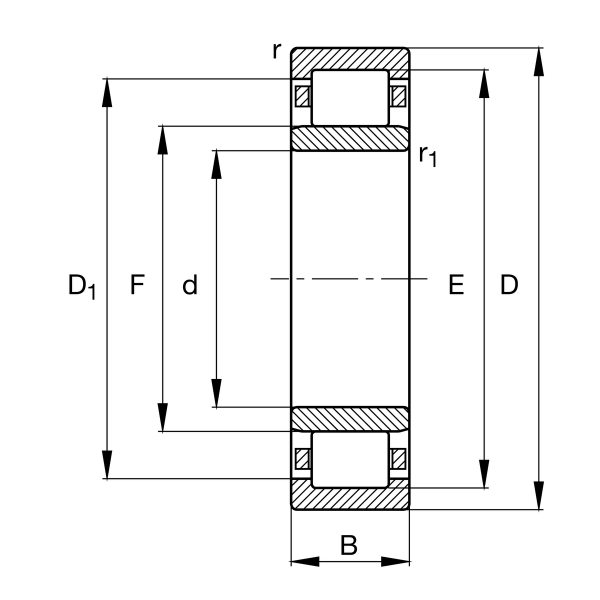

Main Dimensions & Performance Data
d
100 mm
Bore diameter
D
150 mm
Outside diameter
B
24 mm
Width
Cr
116,000 N
Basic dynamic load rating, radial
C0r
135,000 N
Basic static load rating, radial
Cur
17,700 N
Fatigue load limit, radial
CG
9,000 1/min
Limiting speed
nϑr
4,150 1/min
Reference speed
≈m
1.387 kg
Weight

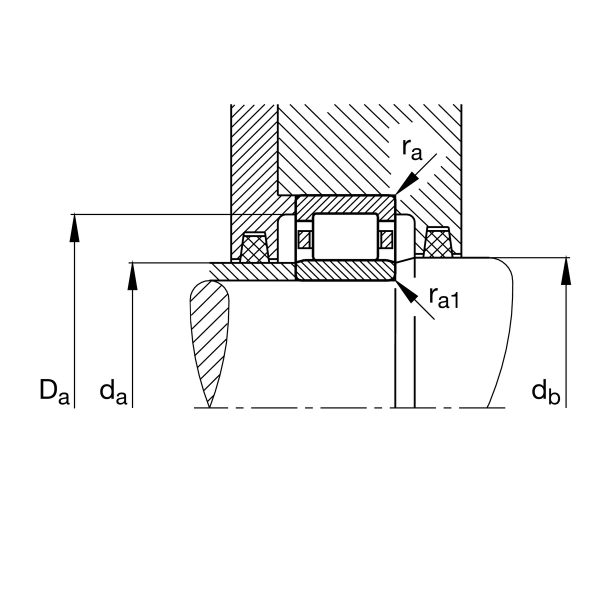

Mounting dimensions
da min
106 mm
Minimum diameter shaft shoulder
da max
111 mm
Maximum diameter of shaft shoulder
db min
116 mm
Minimum shaft shoulder
Da max
143 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
