FAG NU19/670-TB-M1
Cylindrical roller bearing NU20..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

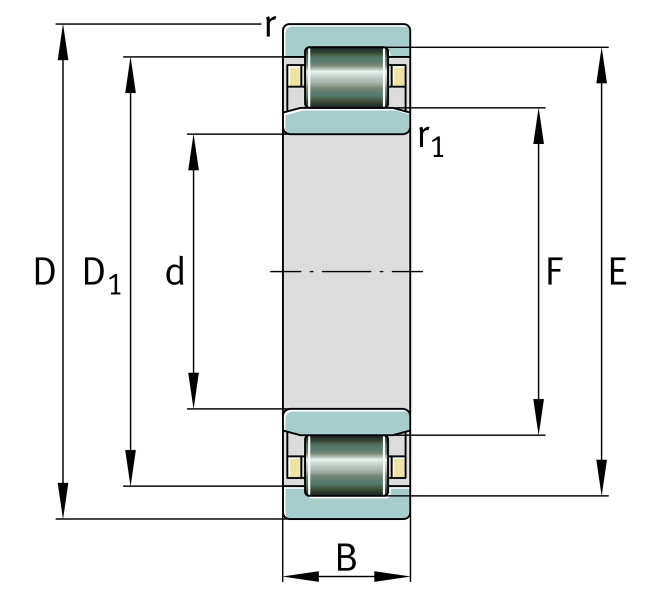

Main Dimensions & Performance Data
d
670 mm
Bore diameter
D
900 mm
Outside diameter
B
103 mm
Width
Cr
2,040,000 N
Basic dynamic load rating, radial
C0r
4,250,000 N
Basic static load rating, radial
Cur
295,000 N
Fatigue load limit, radial
CG
1,190 1/min
Limiting speed
nϑr
530 1/min
Reference speed
≈m
183 kg
Weight
Mounting dimensions
da min
693 mm
Minimum diameter shaft shoulder
da max
726 mm
Maximum diameter of shaft shoulder
db min
736 mm
Minimum shaft shoulder
Da max
877 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
ra1 max
5 mm
Maximum recess radius
