FAG NU1992-M1-C3
Cylindrical roller bearing NU20..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

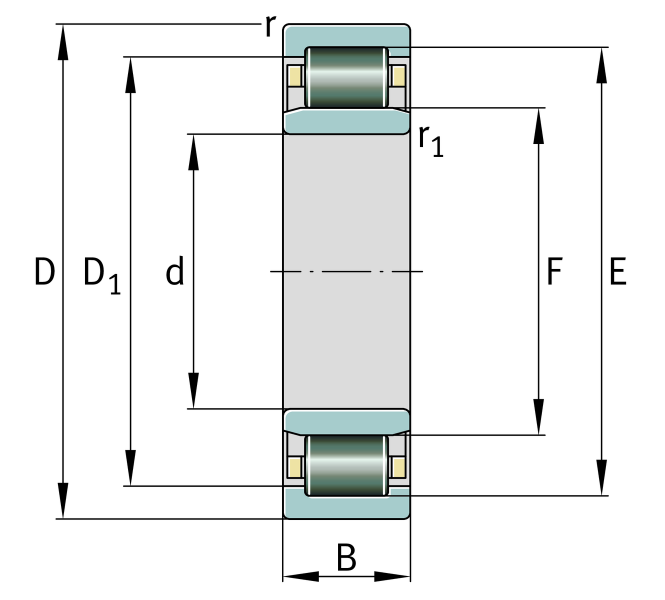

Main Dimensions & Performance Data
d
460 mm
Bore diameter
D
620 mm
Outside diameter
B
74 mm
Width
Cr
1,020,000 N
Basic dynamic load rating, radial
C0r
1,970,000 N
Basic static load rating, radial
Cur
157,000 N
Fatigue load limit, radial
CG
1,770 1/min
Limiting speed
nϑr
860 1/min
Reference speed
≈m
62.1 kg
Weight
Mounting dimensions
da min
475 mm
Minimum diameter shaft shoulder
da max
498 mm
Maximum diameter of shaft shoulder
db min
506 mm
Minimum shaft shoulder
Da max
605 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
ra1 max
3 mm
Maximum recess radius
