FAG NU206-E-XL-M1
Cylindrical roller bearing NU..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

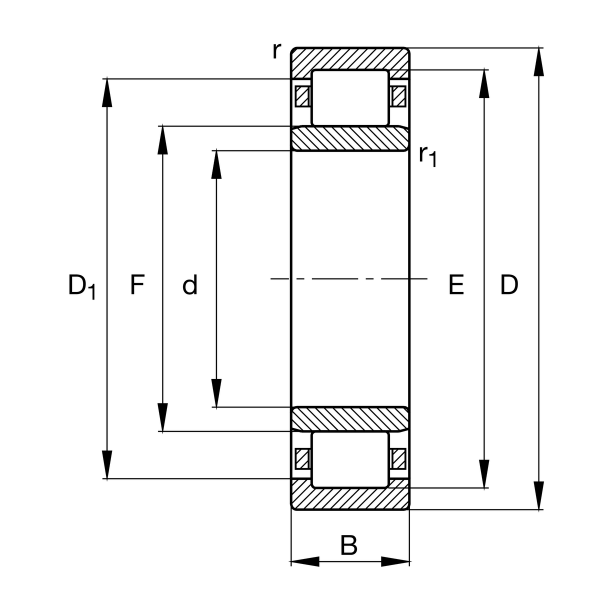

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
62 mm
Outside diameter
B
16 mm
Width
Cr
46,000 N
Basic dynamic load rating, radial
C0r
37,500 N
Basic static load rating, radial
Cur
4,450 N
Fatigue load limit, radial
CG
21,200 1/min
Limiting speed
nϑr
9,600 1/min
Reference speed
≈m
0.228 kg
Weight
Mounting dimensions
da min
34 mm
Minimum diameter shaft shoulder
da max
37 mm
Maximum diameter of shaft shoulder
db min
40 mm
Minimum shaft shoulder
Da max
56 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
ra1 max
0.6 mm
Maximum recess radius
