FAG NU2084-E-M1

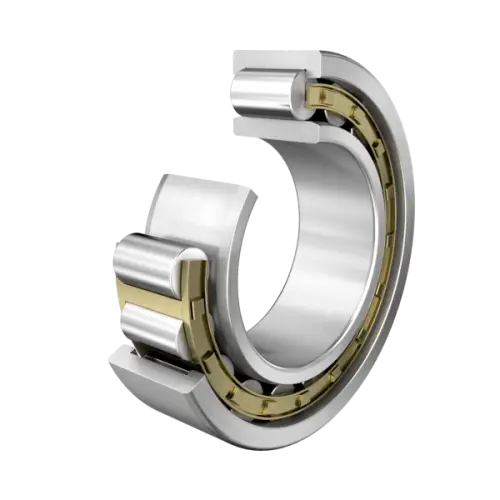

Cylindrical roller bearing NU..-E-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
420 mm
Bore diameter
D
620 mm
Outside diameter
B
118 mm
Width
Cr
2,330,000 N
Basic dynamic load rating, radial
C0r
4,650,000 N
Basic static load rating, radial
Cur
425,000 N
Fatigue load limit, radial
CG
1,670 1/min
Limiting speed
nϑr
620 1/min
Reference speed
≈m
127.2 kg
Weight
Mounting dimensions
da min
437 mm
Minimum diameter shaft shoulder
da max
469 mm
Maximum diameter of shaft shoulder
db min
477 mm
Minimum shaft shoulder
Da max
603 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
ra1 max
4 mm
Maximum recess radius
