FAG NU209-E-XL-M1-J20GA-H257A-C4
Cylindrical Roller Bearings

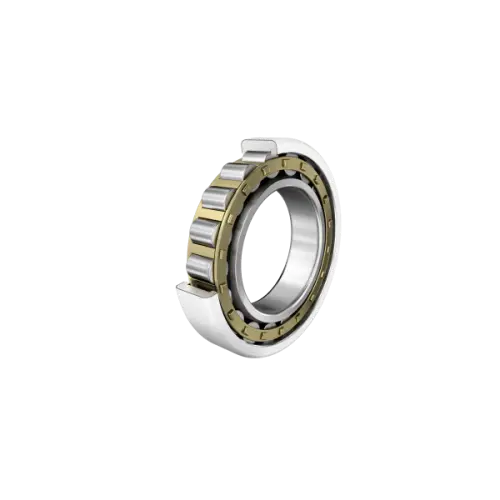

Cylindrical roller bearing NU..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

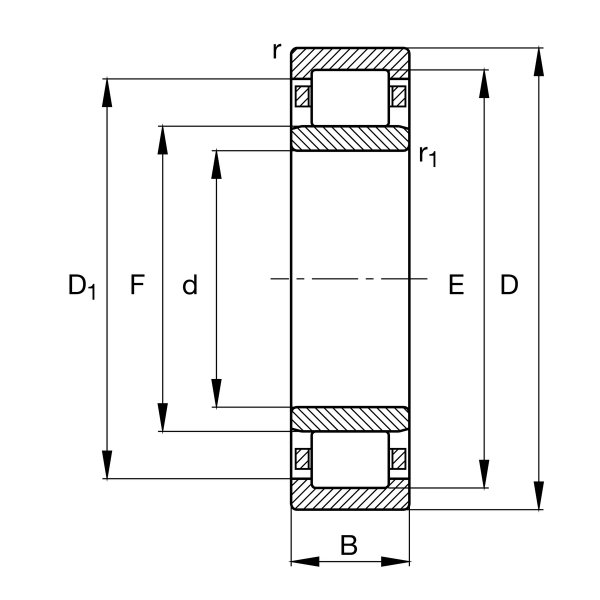

Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
19 mm
Width
Cr
76,000 N
Basic dynamic load rating, radial
C0r
68,000 N
Basic static load rating, radial
Cur
8,800 N
Fatigue load limit, radial
CG
15,300 1/min
Limiting speed
nϑr
6,900 1/min
Reference speed
≈m
485.15 g
Weight

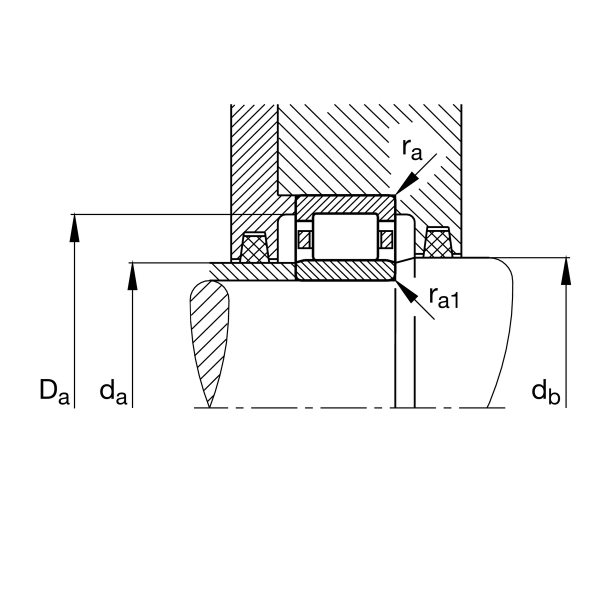

Mounting dimensions
da min
52 mm
Minimum diameter shaft shoulder
da max
54 mm
Maximum diameter of shaft shoulder
db min
57 mm
Minimum shaft shoulder
Da max
78 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
