FAG NU216-E-XL-M1-F1-J20AA
Cylindrical Roller Bearings
Cylindrical roller bearing NU..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

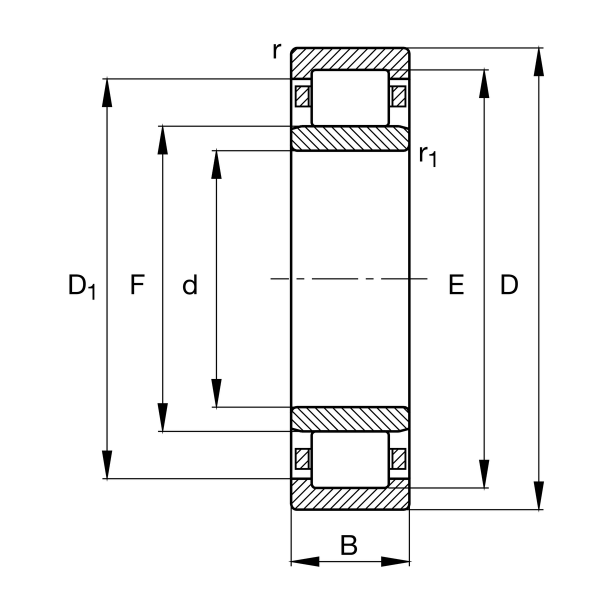

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
26 mm
Width
Cr
166,000 N
Basic dynamic load rating, radial
C0r
168,000 N
Basic static load rating, radial
Cur
23,100 N
Fatigue load limit, radial
CG
9,000 1/min
Limiting speed
nϑr
4,200 1/min
Reference speed
≈m
1.68 kg
Weight
Mounting dimensions
da min
91 mm
Minimum diameter shaft shoulder
da max
94 mm
Maximum diameter of shaft shoulder
db min
97 mm
Minimum shaft shoulder
Da max
129 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
ra1 max
2 mm
Maximum recess radius
