FAG NU2264-EX-TB-M1
Cylindrical roller bearing NU2..-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

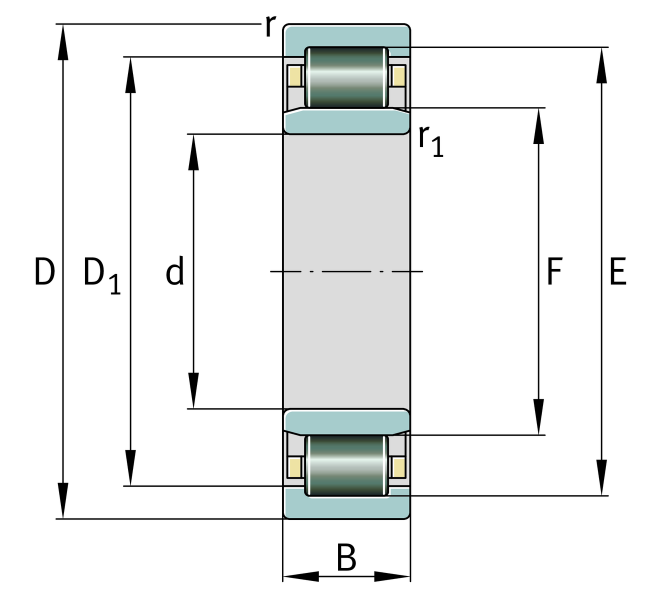

Main Dimensions & Performance Data
d
320 mm
Bore diameter
D
580 mm
Outside diameter
B
150 mm
Width
Cr
3,150,000 N
Basic dynamic load rating, radial
C0r
4,900,000 N
Basic static load rating, radial
Cur
470,000 N
Fatigue load limit, radial
CG
1,650 1/min
Limiting speed
nϑr
570 1/min
Reference speed
≈m
177.31 kg
Weight
Mounting dimensions
da min
340 mm
Minimum diameter shaft shoulder
da max
376.5 mm
Maximum diameter of shaft shoulder
db min
383.5 mm
Minimum shaft shoulder
Da max
560 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
ra1 max
4 mm
Maximum recess radius
