FAG NU2326-E-XL-MCA-QP51-C4
Cylindrical Roller Bearings

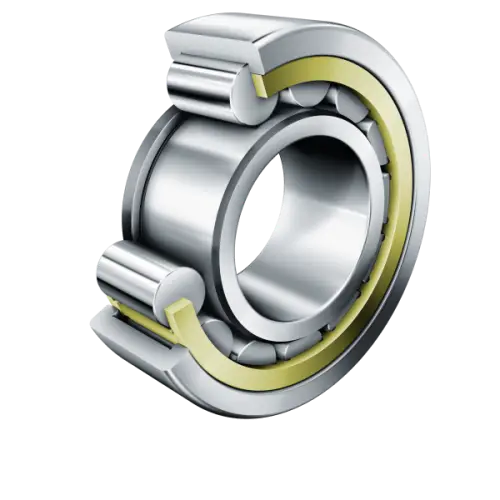

Cylindrical roller bearing NU20..-E-XL-MCA, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
280 mm
Outside diameter
B
93 mm
Width
Cr
1,080,000 N
Basic dynamic load rating, radial
C0r
1,220,000 N
Basic static load rating, radial
Cur
200,000 N
Fatigue load limit, radial
CG
4,250 1/min
Limiting speed
nϑr
1,750 1/min
Reference speed
≈m
28.7 kg
Weight
Mounting dimensions
da min
147 mm
Minimum diameter shaft shoulder
da max
164 mm
Maximum diameter of shaft shoulder
db min
169 mm
Minimum shaft shoulder
Da max
263 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
ra1 max
3 mm
Maximum recess radius
