FAG NU2336-EX-TB-M1
Cylindrical roller bearing NU2..-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

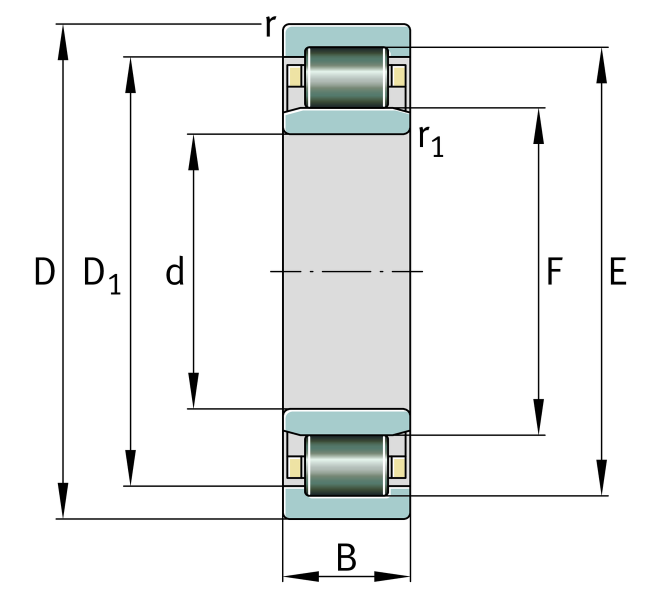

Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
380 mm
Outside diameter
B
126 mm
Width
Cr
1,680,000 N
Basic dynamic load rating, radial
C0r
2,330,000 N
Basic static load rating, radial
Cur
260,000 N
Fatigue load limit, radial
CG
2,600 1/min
Limiting speed
nϑr
1,120 1/min
Reference speed
≈m
72.1 kg
Weight
Mounting dimensions
da min
197 mm
Minimum diameter shaft shoulder
da max
225 mm
Maximum diameter of shaft shoulder
db min
229 mm
Minimum shaft shoulder
Da max
363 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
ra1 max
3 mm
Maximum recess radius
