FAG NU2340-EX-TB-M1
Cylindrical roller bearing NU2..-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

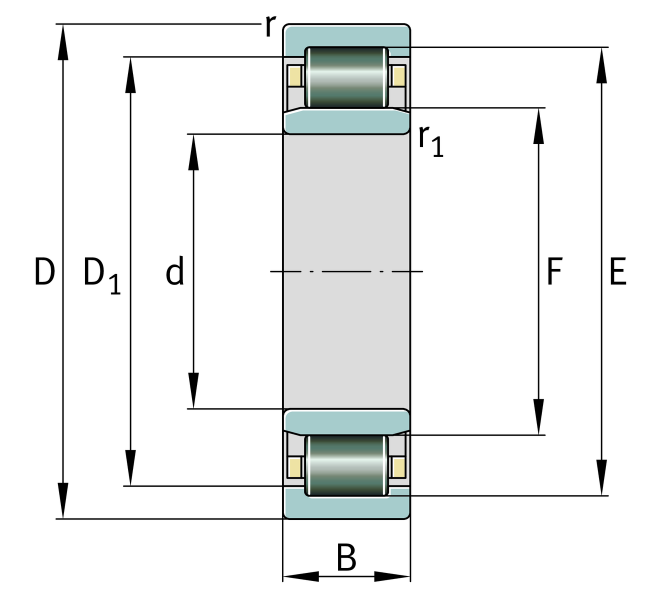

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
420 mm
Outside diameter
B
138 mm
Width
Cr
2,040,000 N
Basic dynamic load rating, radial
C0r
2,900,000 N
Basic static load rating, radial
Cur
315,000 N
Fatigue load limit, radial
CG
2,330 1/min
Limiting speed
nϑr
940 1/min
Reference speed
≈m
97.1 kg
Weight
Mounting dimensions
da min
220 mm
Minimum diameter shaft shoulder
da max
250.7 mm
Maximum diameter of shaft shoulder
db min
255.3 mm
Minimum shaft shoulder
Da max
400 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
ra1 max
4 mm
Maximum recess radius
