FAG NU2348-EX-TB-M1
Cylindrical roller bearing NU2..-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

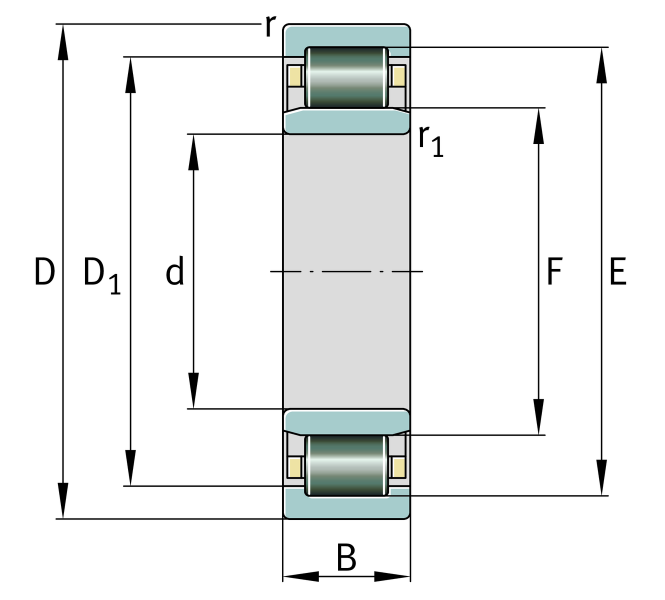

Main Dimensions & Performance Data
d
240 mm
Bore diameter
D
500 mm
Outside diameter
B
155 mm
Width
Cr
2,600,000 N
Basic dynamic load rating, radial
C0r
3,750,000 N
Basic static load rating, radial
Cur
380,000 N
Fatigue load limit, radial
CG
1,940 1/min
Limiting speed
nϑr
750 1/min
Reference speed
≈m
149.31 kg
Weight
Mounting dimensions
da min
260 mm
Minimum diameter shaft shoulder
da max
300.5 mm
Maximum diameter of shaft shoulder
db min
305.5 mm
Minimum shaft shoulder
Da max
480 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
ra1 max
4 mm
Maximum recess radius
