FAG NU352-E-TB-M1
Cylindrical roller bearing NU20..-E-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock

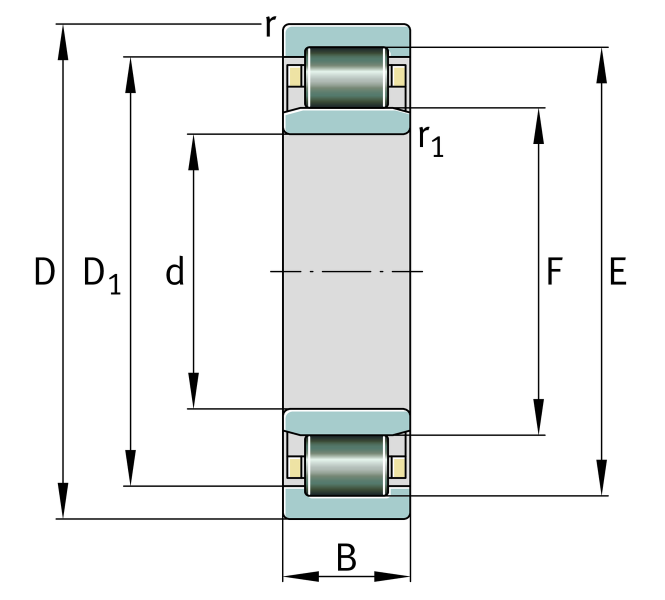

Main Dimensions & Performance Data
d
260 mm
Bore diameter
D
540 mm
Outside diameter
B
102 mm
Width
Cr
1,910,000 N
Basic dynamic load rating, radial
C0r
2,600,000 N
Basic static load rating, radial
Cur
187,000 N
Fatigue load limit, radial
CG
1,840 1/min
Limiting speed
nϑr
900 1/min
Reference speed
≈m
117.8 kg
Weight
Mounting dimensions
da min
286 mm
Minimum diameter shaft shoulder
da max
334.3 mm
Maximum diameter of shaft shoulder
db min
339.7 mm
Minimum shaft shoulder
Da max
514 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
ra1 max
5 mm
Maximum recess radius
