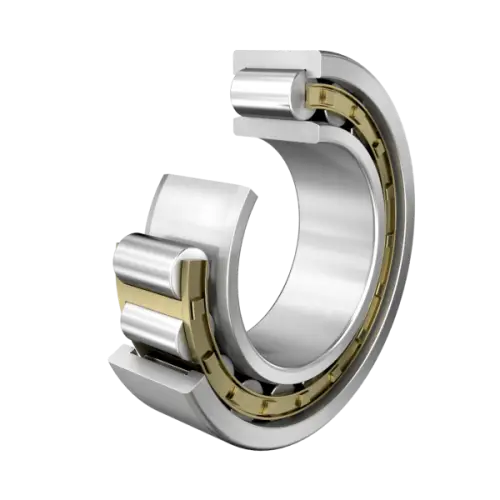

FAG NU424-XL-M1-C4
Cylindrical roller bearing NU..-XL-M1, with cage, single row, non-locating bearing, 2 ribs on outer ring, 0 ribs on inner ring (smooth), type NU, Running accuracy in P6
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
310 mm
Outside diameter
B
72 mm
Width
Cr
850,000 N
Basic dynamic load rating, radial
C0r
840,000 N
Basic static load rating, radial
Cur
99,000 N
Fatigue load limit, radial
CG
3,950 1/min
Limiting speed
nϑr
2,200 1/min
Reference speed
≈m
39 kg
Weight

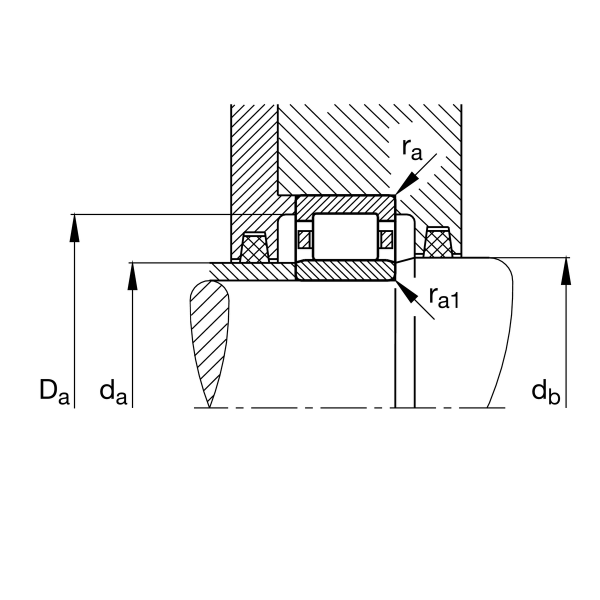

Mounting dimensions
da min
144 mm
Minimum diameter shaft shoulder
da max
168 mm
Maximum diameter of shaft shoulder
db min
172 mm
Minimum shaft shoulder
Da max
286 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
ra1 max
4 mm
Maximum recess radius
