FAG NUP211-E-XL-M1-C3
Cylindrical roller bearing NUP..-E-XL-M1, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock
Main Dimensions & Performance Data
d
55 mm
Bore diameter
D
100 mm
Outside diameter
B
21 mm
Width
Cr
99,000 N
Basic dynamic load rating, radial
C0r
95,000 N
Basic static load rating, radial
Cur
16,400 N
Fatigue load limit, radial
CG
13,000 1/min
Limiting speed
nϑr
5,800 1/min
Reference speed
≈m
0.76 kg
Weight

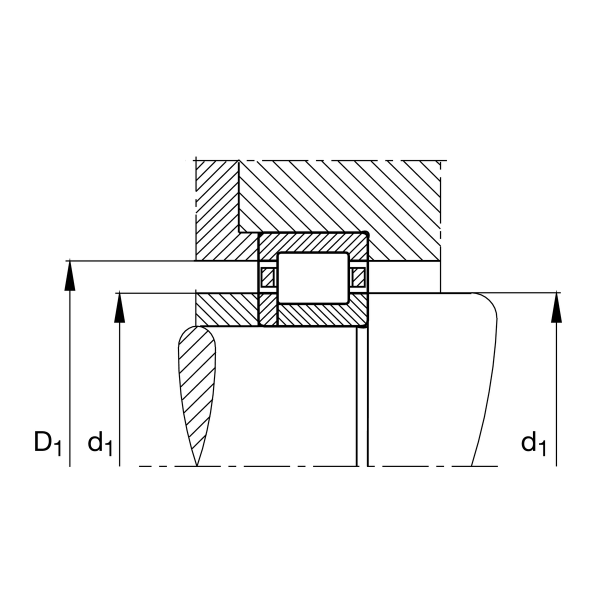

Mounting dimensions
d1
70.8 mm
Maximum rib diameter inner ring
D1 min
86.62 mm
Minimum rib diameter outer ring
da min
62 mm
Minimum diameter shaft shoulder
d min
73 mm
Minimum shaft shoulder
Da max
91 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
