FAG NUP212-E-XL-TVP2
Cylindrical roller bearing NUP..-E-XL-TVP2, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock

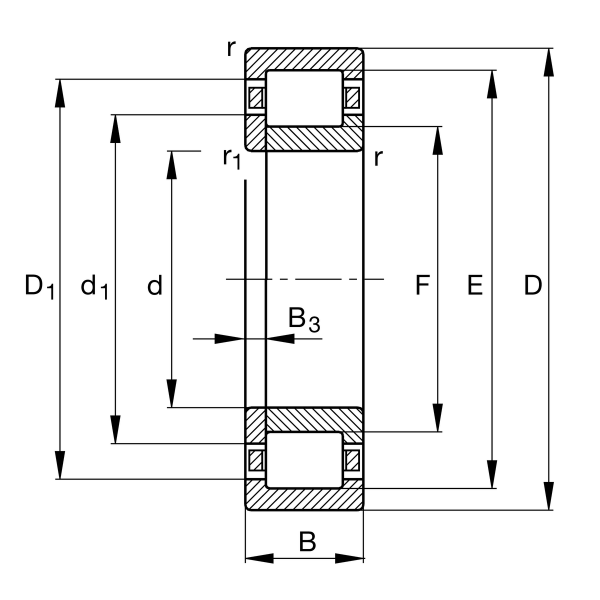

Main Dimensions & Performance Data
d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
22 mm
Width
Cr
112,000 N
Basic dynamic load rating, radial
C0r
103,000 N
Basic static load rating, radial
Cur
17,900 N
Fatigue load limit, radial
CG
8,900 1/min
Limiting speed
nϑr
5,300 1/min
Reference speed
≈m
0.85 kg
Weight

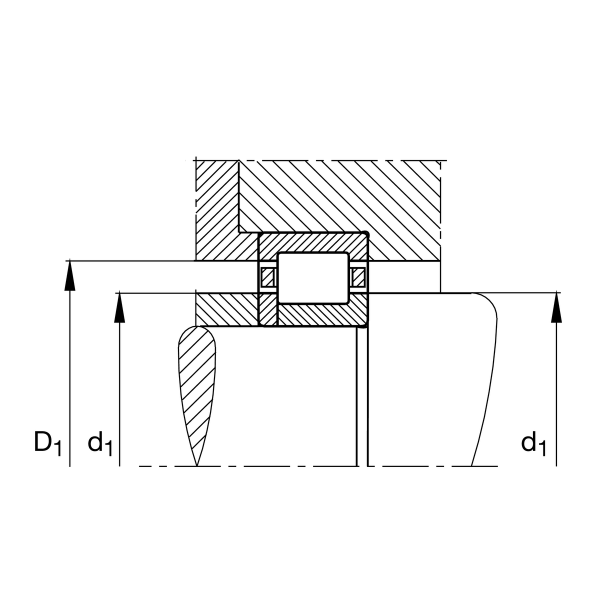

Mounting dimensions
d1
77.6 mm
Maximum rib diameter inner ring
D1 min
96.1 mm
Minimum rib diameter outer ring
da min
69 mm
Minimum diameter shaft shoulder
d min
80 mm
Minimum shaft shoulder
Da max
101 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
