FAG NUP213-E-XL-TVP2>A
Cylindrical roller bearing NUP..-E-XL-TVP2, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock

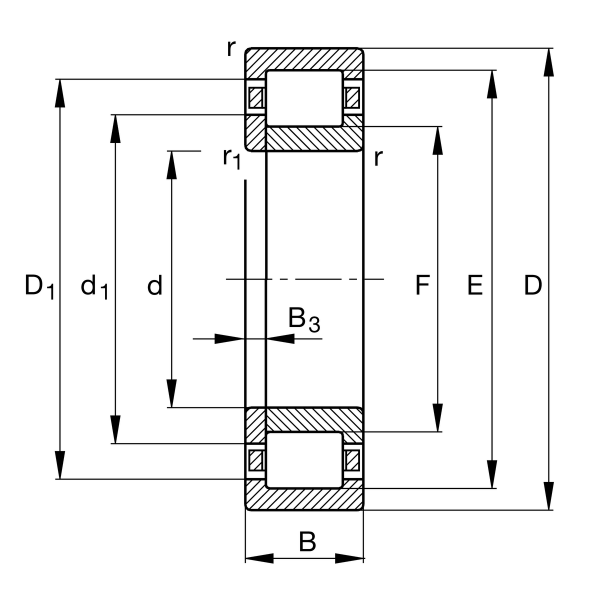

Main Dimensions & Performance Data
d
65 mm
Bore diameter
D
120 mm
Outside diameter
B
23 mm
Width
Cr
128,000 N
Basic dynamic load rating, radial
C0r
120,000 N
Basic static load rating, radial
Cur
21,200 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
nϑr
4,900 1/min
Reference speed
≈m
1.06 kg
Weight

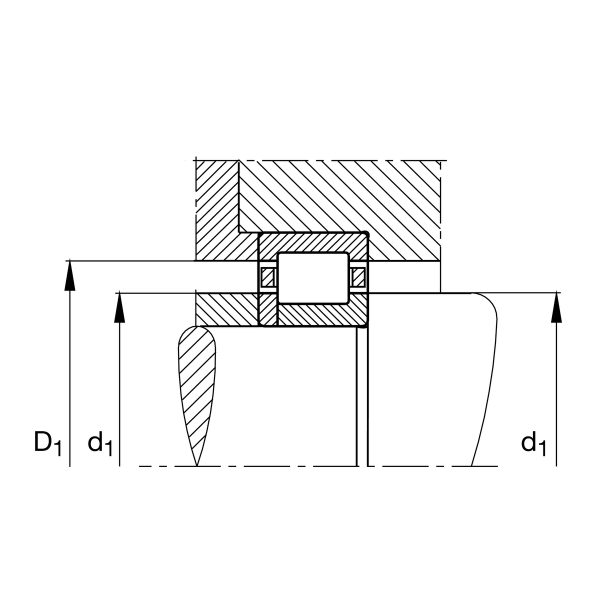

Mounting dimensions
d1
84.4 mm
Maximum rib diameter inner ring
D1 min
104.3 mm
Minimum rib diameter outer ring
da min
74 mm
Minimum diameter shaft shoulder
d min
87 mm
Minimum shaft shoulder
Da max
111 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum recess radius
