FAG NUP216-E-XL-TVP2-F1-J20AA-C4
Cylindrical Roller Bearings

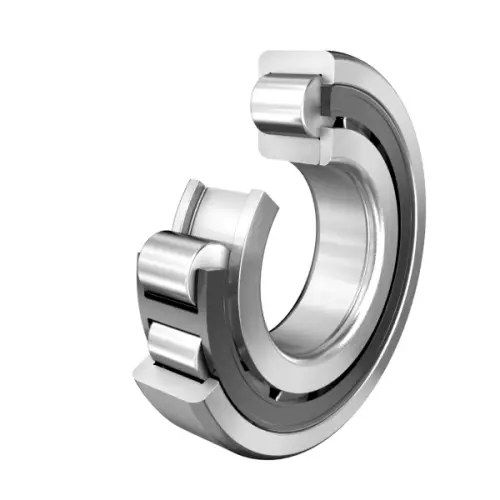

Cylindrical roller bearing NUP..-E-XL-TVP2, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
B
26 mm
Width
Cr
166,000 N
Basic dynamic load rating, radial
C0r
168,000 N
Basic static load rating, radial
Cur
29,500 N
Fatigue load limit, radial
CG
7,000 1/min
Limiting speed
nϑr
4,200 1/min
Reference speed
≈m
1.536 kg
Weight
Mounting dimensions
d1
101.5 mm
Maximum rib diameter inner ring
D1 min
122.9 mm
Minimum rib diameter outer ring
da min
91 mm
Minimum diameter shaft shoulder
d min
104 mm
Minimum shaft shoulder
Da max
129 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
