FAG NUP2210-E-XL-TVP2
Cylindrical roller bearing NUP..-E-XL-TVP2, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock

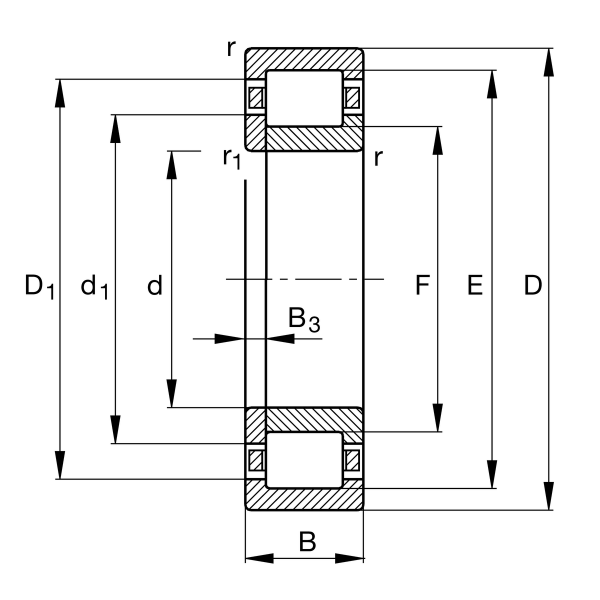

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
23 mm
Width
Cr
92,000 N
Basic dynamic load rating, radial
C0r
88,000 N
Basic static load rating, radial
Cur
15,300 N
Fatigue load limit, radial
CG
11,100 1/min
Limiting speed
nϑr
5,300 1/min
Reference speed
≈m
0.583 kg
Weight

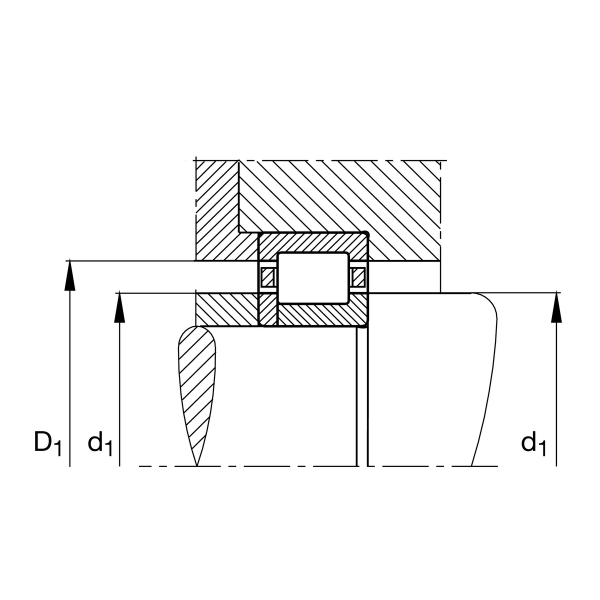

Mounting dimensions
d1
64 mm
Maximum rib diameter inner ring
D1 min
78.3 mm
Minimum rib diameter outer ring
da min
57 mm
Minimum diameter shaft shoulder
d min
67 mm
Minimum shaft shoulder
Da max
83 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
