FAG NUP2336-EX-TB-MPAX
Cylindrical roller bearing NUP..-EX-TB-MPAX, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock

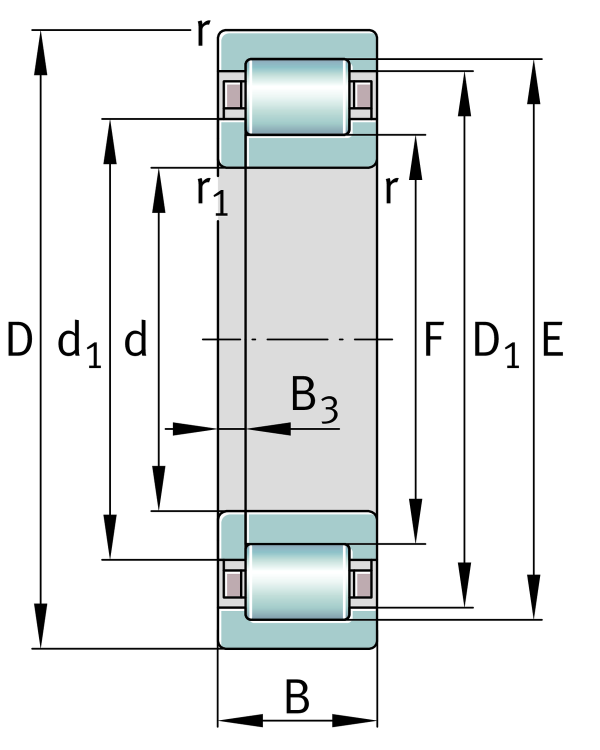

Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
380 mm
Outside diameter
B
126 mm
Width
Cr
1,680,000 N
Basic dynamic load rating, radial
C0r
2,330,000 N
Basic static load rating, radial
Cur
260,000 N
Fatigue load limit, radial
CG
2,600 1/min
Limiting speed
nϑr
1,120 1/min
Reference speed
≈m
76.8 kg
Weight
Mounting dimensions
d1
248 mm
Maximum rib diameter inner ring
D1 min
320.8 mm
Minimum rib diameter outer ring
da min
197 mm
Minimum diameter shaft shoulder
d min
250.6 mm
Minimum shaft shoulder
Da max
363 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
