FAG NUP240-E-M1
Cylindrical roller bearing NUP..-E-M1, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock

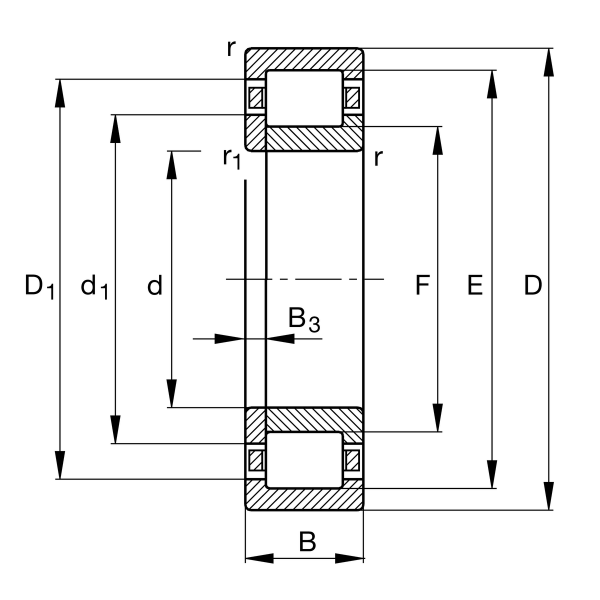

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
360 mm
Outside diameter
B
58 mm
Width
Cr
750,000 N
Basic dynamic load rating, radial
C0r
1,040,000 N
Basic static load rating, radial
Cur
124,000 N
Fatigue load limit, radial
CG
2,900 1/min
Limiting speed
nϑr
1,600 1/min
Reference speed
≈m
28.3 kg
Weight

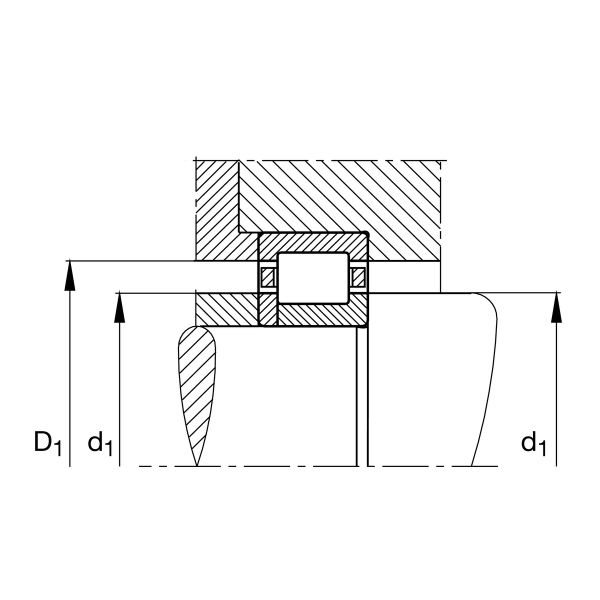

Mounting dimensions
d1
257.6 mm
Maximum rib diameter inner ring
D1 min
311.5 mm
Minimum rib diameter outer ring
da min
217 mm
Minimum diameter shaft shoulder
d min
261 mm
Minimum shaft shoulder
Da max
343 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
