FAG NUP319-E-XL-TVP2

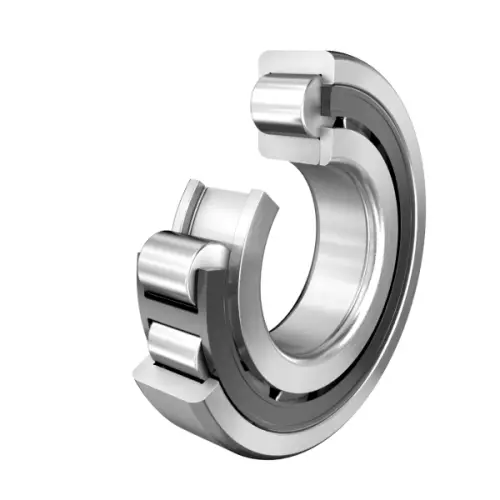

Cylindrical roller bearing NUP..-E-XL-TVP2, with cage, single row, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
95 mm
Bore diameter
D
200 mm
Outside diameter
B
45 mm
Width
Cr
390,000 N
Basic dynamic load rating, radial
C0r
380,000 N
Basic static load rating, radial
Cur
65,000 N
Fatigue load limit, radial
CG
4,700 1/min
Limiting speed
nϑr
3,550 1/min
Reference speed
≈m
6.5 kg
Weight
Mounting dimensions
d1
132 mm
Maximum rib diameter inner ring
D1 min
169.6 mm
Minimum rib diameter outer ring
da min
109 mm
Minimum diameter shaft shoulder
d min
134 mm
Minimum shaft shoulder
Da max
186 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
