FAG QJ1021-XL-N2-MPA
Four-Point Contact Ball Bearings

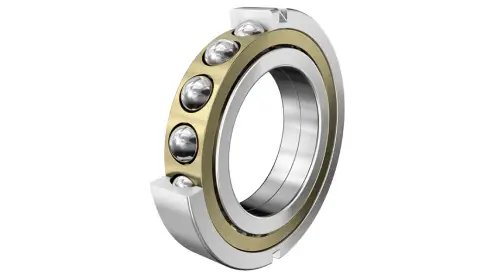

Four point contact ball bearing QJ10..-XL-N2-MPA, X-life, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

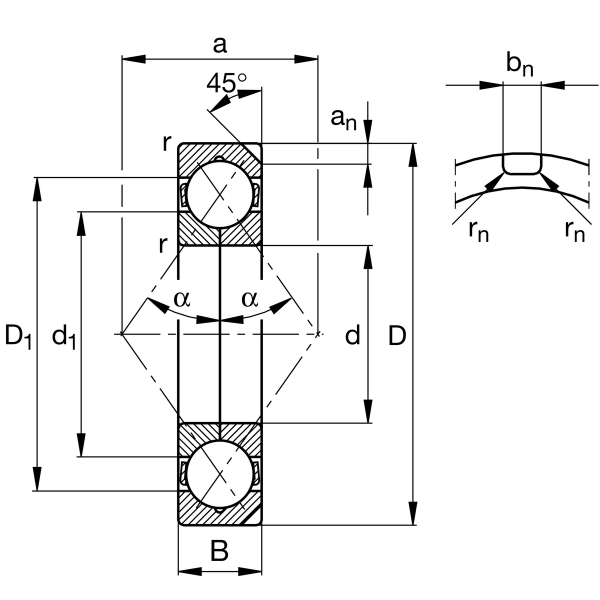

Main Dimensions & Performance Data
d
105 mm
Bore diameter
D
160 mm
Outside diameter
B
26 mm
Width
Cr
126,000 N
Basic dynamic load rating, radial
C0r
145,000 N
Basic static load rating, radial
Cur
8,700 N
Fatigue load limit, radial
CG
8,100 1/min
Limiting speed
nϑr
3,550 1/min
Reference speed
≈m
2.04 kg
Weight

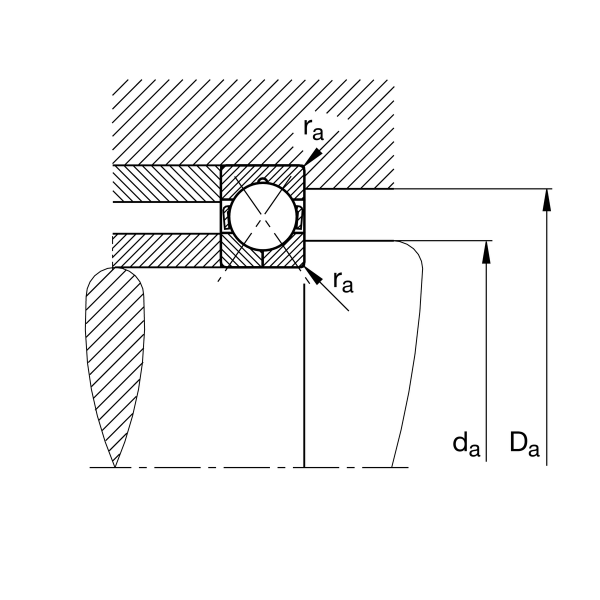

Mounting dimensions
da min
114 mm
Minimum diameter shaft shoulder
da min
151 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
