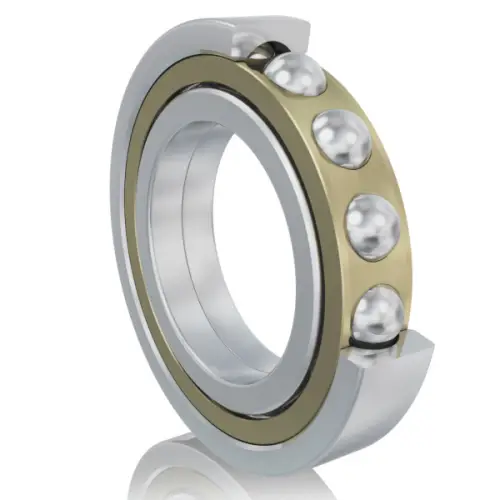

FAG QJ252-N2-MPA-J30PC-C3
Four-Point Contact Ball Bearings
Four point contact bearing QJ2..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
260 mm
Bore diameter
D
480 mm
Outside diameter
B
80 mm
Width
Cr
840,000 N
Basic dynamic load rating, radial
C0r
1,630,000 N
Basic static load rating, radial
Cur
47,000 N
Fatigue load limit, radial
CG
2,320 1/min
Limiting speed
nϑr
1,080 1/min
Reference speed
≈m
69.2 kg
Weight
Mounting dimensions
da min
280 mm
Minimum diameter shaft shoulder
da min
460 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
