FAG QJ348-N2-MPA-J30PD-C3
Four-Point Contact Ball Bearings

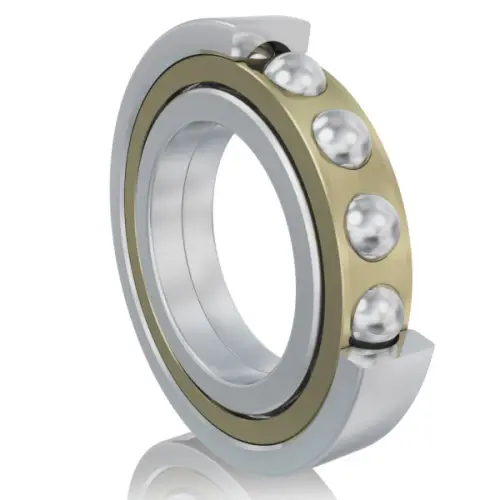

Four point contact bearing QJ3..-N2-MPA, holding grooves, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

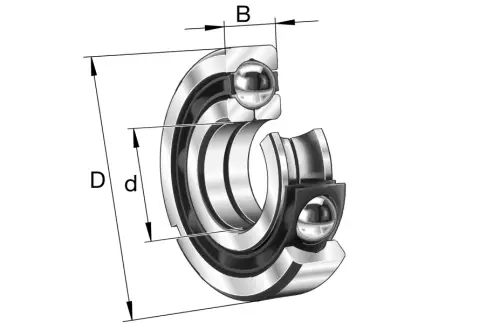

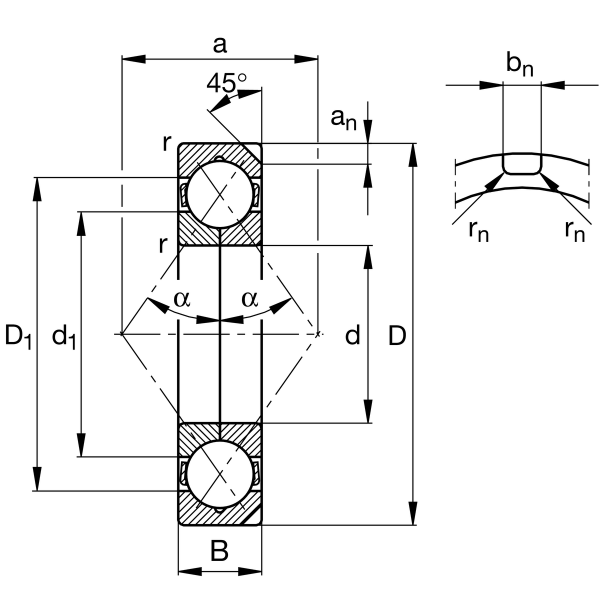

Main Dimensions & Performance Data
d
240 mm
Bore diameter
D
500 mm
Outside diameter
B
95 mm
Width
Cr
1,030,000 N
Basic dynamic load rating, radial
C0r
1,980,000 N
Basic static load rating, radial
Cur
58,000 N
Fatigue load limit, radial
CG
2,220 1/min
Limiting speed
nϑr
950 1/min
Reference speed
≈m
96.8 kg
Weight

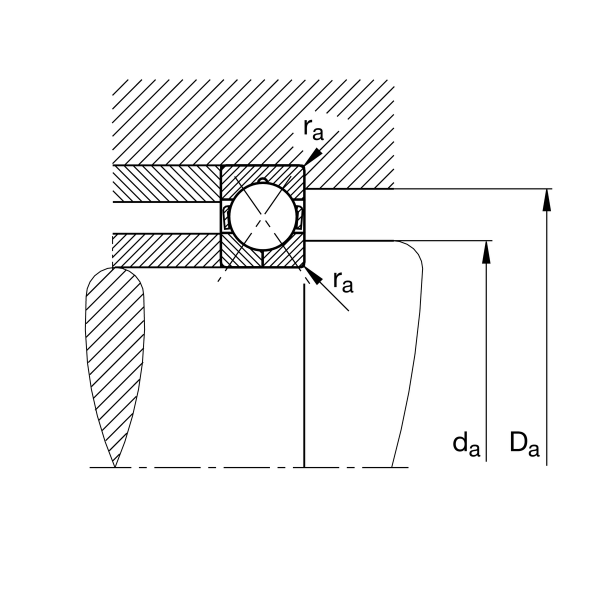

Mounting dimensions
da min
260 mm
Minimum diameter shaft shoulder
da min
480 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum fillet radius
